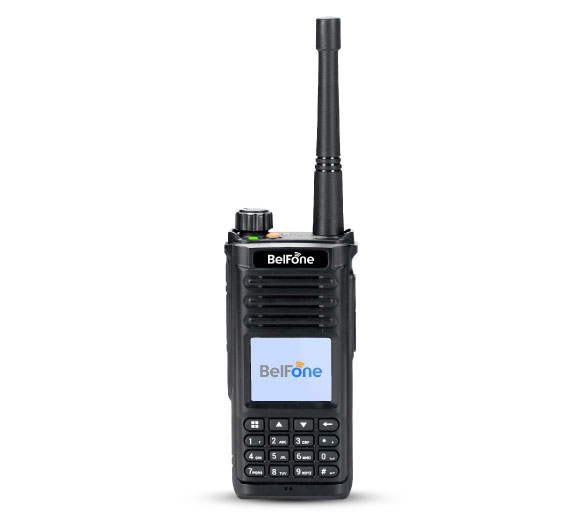

COMMERCIAL HYBRID RADIO

BF-TP800

TP800 is a new advanced multi-mode radio which integrates public broadband and narrowband PMR technology to provide critical voice and data services. It brings flexible useability of public network, private network, mixed network and gateway mode, and performance advancements like split-screen, dual PTT, GPS, recording, Bluetooth, etc., to be convenient and benefit for every aspect of radio experience. Designed to meet diversified requirements, it ensures mission-critical reliability, accelerates workflows, and keeps responders safe and effective.

Brochure

Inquiry

Features & Benefits

Specification

Accessories

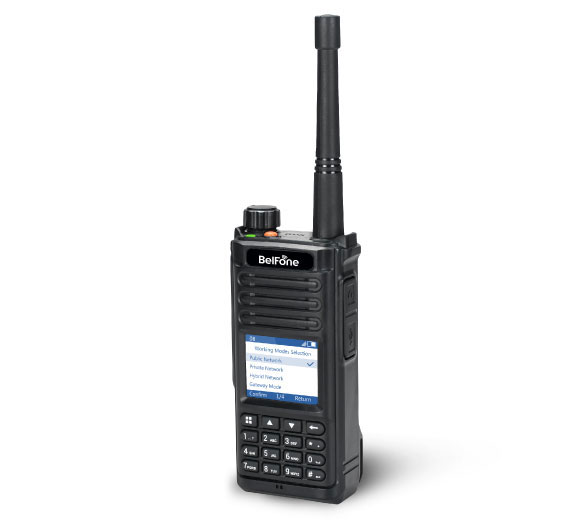

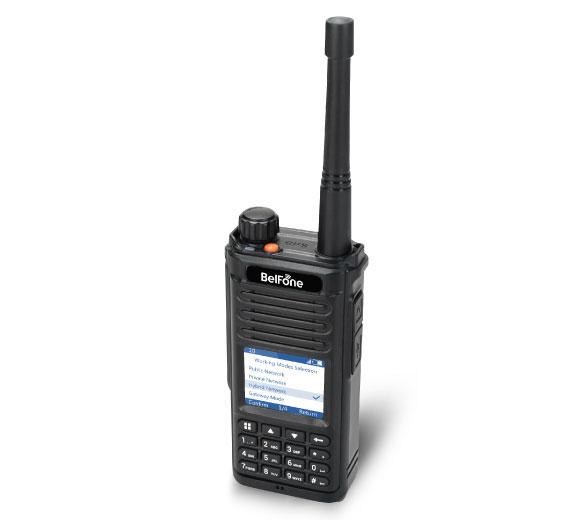

Multi-mode Hybrid,FIexibIe Communications

A multi-mode radio works in DMR, analog, and PoC (public 4G/3G/2G) mode, which could always be in connect, to communicate whenever and wherever.

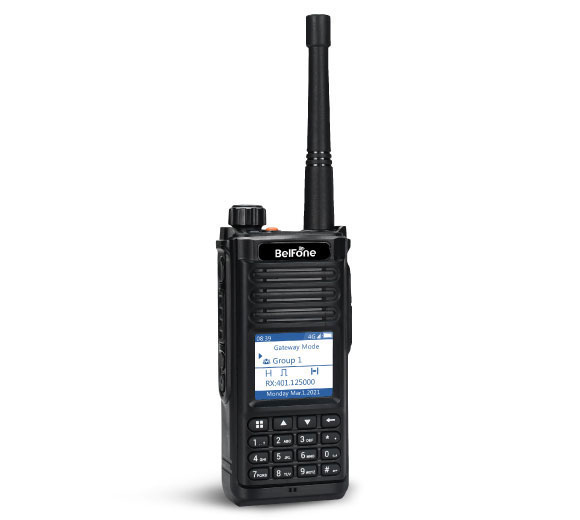

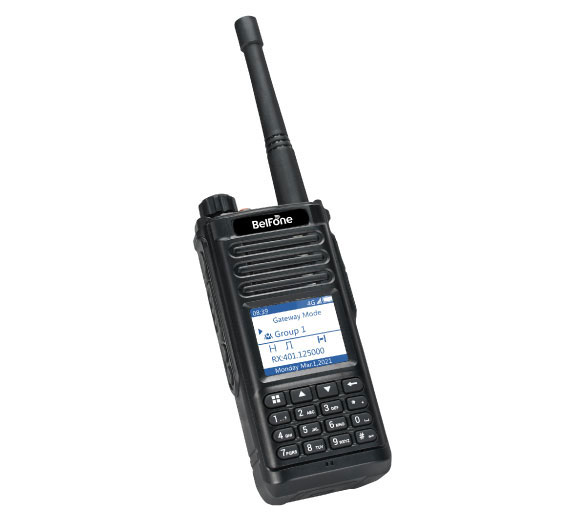

Intelligent Gateway Mode

This smart radio provides outstanding connectivity of PMR(DMR OR analog)and PoC, brings all the advantages of narrowband and broadband technologies, bridging the voice communication over different networks.

Intuitive Multi-Active Split-screen

Designed with a full keypad, 1.77 transflective LCD, it offers you the choice of narrowband and broadband display up and down.

5000Ah Extended Battery Life

It comes with a 14-hour smart lithium battery and built-in PTC protection to take your communication even further.

Support4G/3G/2G, national limitless communication

WEB-based public network dispatch to provide multi-functions like private/group call, GPS, query, RFID,data,messages,etc.  

Dual PTT of PMR and PoC to call at ease and high efficiency.  

Flexible Multi-Optional Functions

GPS positioning

Bluetooth

Recording 

Low battery voice alert  

Analog DMR PoC Hybrid Radio BF-TP800

General

Frequency Range

VHF: 136-174MHZ； UHF: 350-390MHz/ 400-480MHz/ 450-520MHz

Channels

100

Channel Spacing

12.5KHz/ 25KHz

Working Voltage

DC 3.7V

Frequency Stability

±1.5ppm

Antenna Impedance

50Ω

Battery Capacity

5000 mAh

Battery Average Working Time 5/5/90

Public Network: 14hours； PMR Network: 11 hours

Dimension(H*W*D)

123* 60* 30mm (nExcluding antenna)

Weight

300g (Excluding battery)

Network Standards

LTE-FDD: B1/B3/B5/B8； LTE-TDD: B38/B39/B40/B41；WCDMA: B1/B8 TD-SCDMA: B34/B39

Transmitter (DMR Part)

Output Power

High power: 4.0 ±0.2W； Low power: 1.0 ±0.2W

4FSK Modulation

12.5KHz data only: 7K60FXD； 12.5KHz data and voice: 7K60FXE

Modulation Limitation

±2.5KHz @ 12.5KHz； ±5KHz @ 25KHz

Spurious Emission

-36 dBm 1GHz/ -30 dBm 1GHz

Adjacent Channel Power

≤-60dB

Adio Response

+1/-3dB

Audio Distortion

0.03

Receiver (DMR Part)

Digital Sensitivity

5% BER: 0.25 V

Analog Sensitivity

0.22uV (12 dB SINAD)

Intermodulation

60dB

Adjacent Channel Selectivity

50dB

Spurious Suppression

ETSI/TIA603: 55dB

FM Noise

40dB @ 12.5kHz； 45dB @ 25kHz

Frequency Response

+1/-3 dB

Audio Power

1.5W

Audio Distortion

≤5%

Conduction Radiation

3%(typical)

GPS Precision

Horizontal Accuracy 10m (with good signal)

Environmental Specifications

Operating Temperature

-20 ~+65℃

Storage Temperature

-30 ~+85℃

Water Proof

IP54

Shock & Vibration

MIL-STD-810C/D/E/F

Standard Accessories

BF-B51

BF-BS506

BF-RA806
