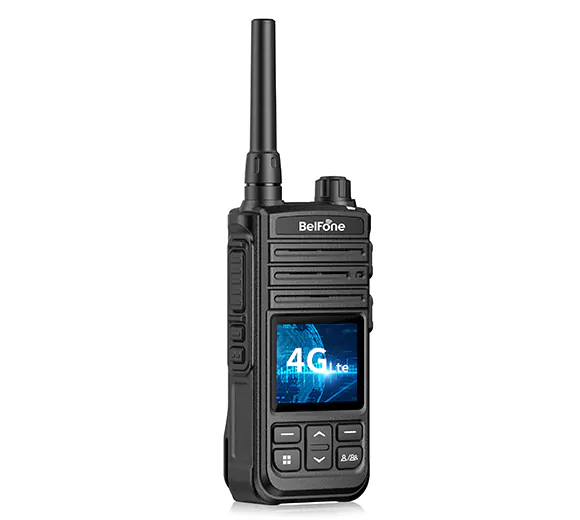

Smart 4G LTE PoC (Push-to-Talk over Cellular) Radio

BF-CM626S

BF-CM626S is a compact and smart PoC two-way radio that offers nationwide coverage over 4G/LTE networks for your PTT communications. The user can enjoy license free nationwide radio communications. With a battery capacity of 5200mAh, BF-CM26S can easily meet the battery needs of long day operations.
Brochure
Inquiry
Features & Benefits
Specification
Accessories


* Diverse Network Coverage: 4G LTE, GSM, WCDMA

4G networks deliver a higher data transfer rate and reduced latency, and thus enable the users to communicate with unprecedented speed and efficiency. Moreover, GSM and WCDMA networks offer the most dynamic options for your PTT communications.



* Built-in Bluetooth

With a paired bluetooth accessory the user can enjoy wireless PTT half & full duplex communications for handsfree operations.


* Talk Priority (Supervisory Override)

A radio with higher level can interrupt communications between radios in lower levels, giving higher priority to preset radios



* Dispatch Application

BelFone PoC radios come with an optional dispatch application that allows managers to track every worker’s location in real-time and monitor and dispatch with ease.



* Real-time Radio Status

This function allows the dispatcher to know whether a user is available or not with the real-time presence indicator--green for "Available" to talk while red for "Do Not Disturb" (DND).



* Over-the-air-programming

The user’s PTT contact book is preset via over-the-air-programming, which makes management easier. And users can better concentrate on their tasks.



General
Working Voltage
3.7V
OS
Android 5.1
Support Network System (the rest of the band can ben customized)
FDD-LTE: B1/B3/B5; WCDMA: B1/B5/B8; CDMA/GSM; TDD-LTE: B38/B39/B40/B41; TD: B34/B39;
GPS
Support, for optional features
Wi-Fi
2.4GHz
Bluetooth
5.1
Battery Capacity
Li-ion:5200mAh( Note: Battery life depends on the network environment)
Dust and Water Proof
IP54
Temperature
Operating Temperature:-20℃~+60℃ ; Storage Temperature:-40℃~+70℃
Memory
4GB(EMMC)+512MB(DDR3)
Support Group
2000
Interface
Sim card *1(micro sim)/2.5mm earphone jack *1
USB
Micro USB(For data transmission and battery charge)
Maximum Speed
Uplink speed: 50Mbps/Downlink speed: 150Mbps
Languages
Chinese/English/Support Customization
Dimensions
55(L)X36(W)X126(H)mm
Weight
250g
Humidity
5%~95% relative humidity
