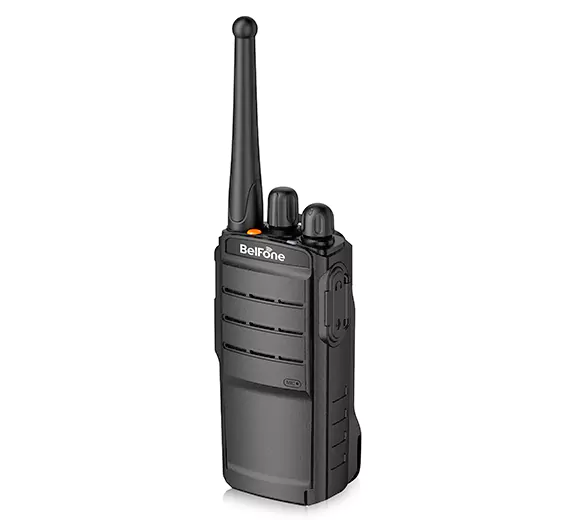

Commercial Portable Radio

BF-TD520

BF-TD520 is an entry level DMR handheld two-way radio and a perfect replacement for analog radios adopted by small businesses. This portable delivers a basic digital feature kit, which includes superb audio, long battery life and higher spectrum efficiency, enabling digital communications and a smooth transition from analog to digital. BF-TD520 is a cost-effective two-way radio for restaurants, hotels, shops and other users.
Brochure
Inquiry
Features & Benefits
Specification
Accessories
Commercial Radio to Do more with less
Commercial Radio to Do more with less
Digital and analog dual modes facilitate enable full transition to digital technology; and enable organizations with DMR technology and cost advantages simultaneously.
Slim, Discreet and Ergonomic
Slim, Discreet and Ergonomic
Small-size and light-weight, it fits easily in your hands. You can move freely and comfortably without feeling a burden. Sleek and compact, it blends well with the business attire.
Compatibility Designs
Compatibility Designs
Compatible with Motorola audio accessories; built-in flashlight, timeout timer (TOT) and other versatile functions for actual needs.





Digital/Analog Dual Modes

BF-TD520 gives you a smooth transition from the analog world to the digital.


A Longer Battery Life

BF-TD520 can function for longer than any conventional analog radio, more than enough to power you through the day.


Small Size and Light Weight

BF-TD520 is small and light enough to be held easily and comfortably in a single hand. It is also very easy to operate.


Excellent Audio Quality

As a digital radio, BF-TD520 delivers clear and crisp audio, bringing an excellent digital audio experience.


Private Call, Group Call And All Call (programmable)

The versatile calling functions bring more efficiency to your teamwork.


Scan/Monitor(programmable)

At a convenient push of a button you can monitor all the conversations on your channel or you can scan conversations on different channels.


Compatible with Motorola Audio Accessories

BF-TD520 is compatible with Motorola audio accessories. So, if you already have a Motorola analog earpiece or microphone, you can pair them with BelFone BF-TD520 and go hands-free.

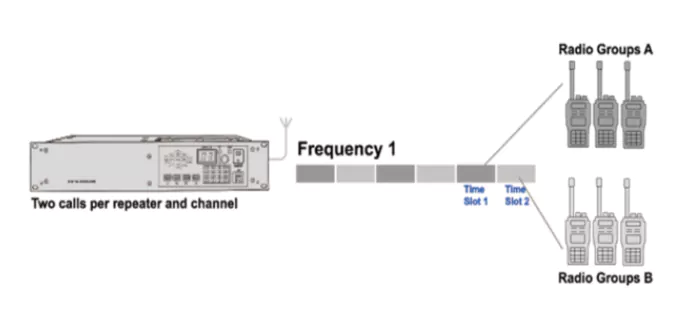

TDMA 2-Slot

In repeater mode this radio supports two voice calls simultaneously due to DMR two timeslots, which means two communication paths at 1 frequency with no extra costs or frequency license.

BF-TD520 Supports Two Voice Calls Simultaneously


Digital/Analog Mixed Mode

Receive both analog and digital signals on a single channel and can automatically switch into the corresponding mode for efficient communications.

BF-TD520 can Receive Both Analog and Digital Signals



General
Frequency Range
VHF: 136-174MHz; UHF: 350-390 MHz/400-480 MHz/ 450-520MHz
Channels
256
Zones
16
Channel Spacing
12.5KHz/25KHz
Working Voltage
DC7.4V (±20%)
Frequency Stability
±1.5ppm
Antenna Impedance
50Ω
Battery Capacity
Real 2000mAh
Battery Average Working Time
Digital 20 hours; Analog 15 hours
Dimension
60(L)* 40(W)* 117(H) mm
Weight
274g (including battery)
Transmitter
Power Output
High power: 5W; Middle power: 3W; Low power: 1W
4FSK Modulation
12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE
FM Modulation
12.5KHz: 8K50FXD; 25KHz: 16KΦF3E
Modulation Limitation
+/- 2.5KHz @ 12.5KHz; +/- 5KHz @ 25KHz
FM Noise
-40dB
Spurious Emission
-36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power
≤-60dB
Frequency Response
+1/-3dB
Vocoder
AMBE+2™
Audio Distortion
<3%
Receiver
Digital Sensitivity
5% BER: 0.25 uV
Analog Sensitivity
0.25 uV (12 dB SINAD)
Intermodulation
65dB
Adjacent Channel Selectivity
60dB
Spurious Suppression
70dB
FM Noise
-40dB
Frequency Response
+1/-3 dB
Audio Power
500mW
Audio Distortion
3% (typical)
Conduction Radiation
-57 dBm
Environmental Specifications
Operating Temperature
-20℃~+60℃
Storage Temperature
-30℃~+85℃
Water Proof
IP54
Shock & Vibration
MIL-STD-810C/D/E/F
