Commercial Portable Radio

BF-TD371

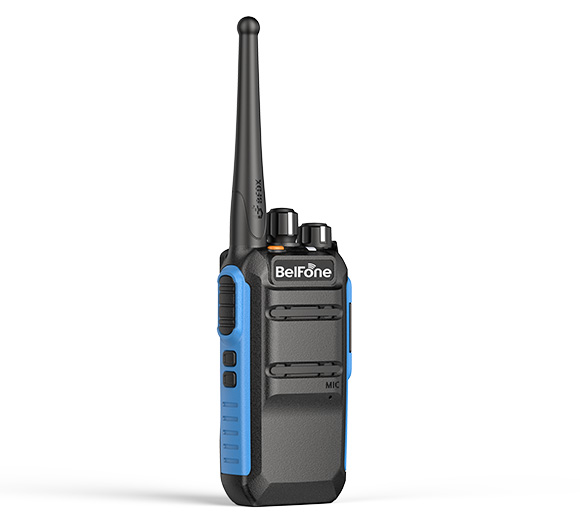

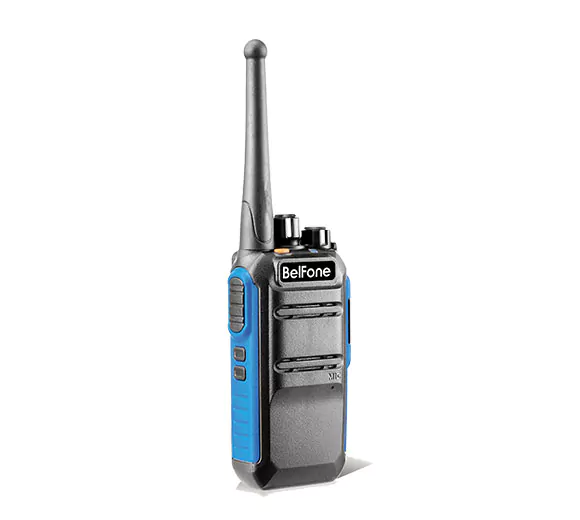

BF-TD371 is a digital radio with amazing performance and low output power, making it an ideal solution for indoor users who want to go digital, especially to migrate from the legacy analog radios. The communication range is further extended by its excellent receiving ability; and its digital mode delivers a consistently clear voice calls without any background noise, even over a long distance. This is a new experience of better audio quality.
Brochure
Inquiry
Features & Benefits
Specification
Accessories
Commercial Radio to Do More with Less
Commercial Radio to Do More with Less
Digital and analog dual modes enable organizations to tap into digital technologies, while keeping their analog radios.
Slim, Discreet and Ergonomic
Slim, Discreet and Ergonomic
Small-size and light-weight, it fits easily in your hands. You can move freely and comfortably without feeling a burden. Sleek and compact, it blends well with the business attire.
Advanced Optional Features
Advanced Optional Features
- DMR Virtual Trunking, automatically choose the free slot.
- DMR two timeslots
- Priority interrupt


Digital/analog Dual Modes

BF-TD371 gives you a smooth transition from the analog world to the digital.


A Longer Battery Life

BF-TD371 can function for longer than any conventional analog radios (digital 19hours; analog 14 hours)


Small Size and Light Weight

BF-TD371 is small enough to be held comfortably in your hand and light enough not to be a burden.


Excellent Audio Quality

The FEC technology and AMBE+2TM vocoder deliver clear and crisp audio.


Private Call, Group Call And All Call (programmable)

The versatile calling functions bring more efficiency to your teamwork.


Scan/Monitor(programmable)

At a convenient push of a button, you can monitor all the conversations on your channel or you can scan conversations on different channels.


Radio Priority-Based Interruption

This function enables a radio with a higher level to interrupt communications between radios with lower levels, giving higher priority to radios with higher levels. This means better dispatching efficiency.


DMO Pseudo Trunk

The user can choose slot 1 or slot 2 for communications. When one slot is occupied the radio will automatically switch into the free slot. Frequency efficiency is greatly increased.

BelFone BF-TD371: DMO Pseudo Trunk


DMO True 2-Slot

In direct mode this radio supports two voice calls simultaneously due to DMR two timeslots, which means two communication paths at 1 frequency with no extra costs or frequency license.

BelFone BF-TD371: DMO True 2-Slot


Digital/Analog Dual Modes

Receive both analog and digital signals on a single channel and can automatically switch into the needed mode for efficient communications.

BelFone BF-TD371: Digital/Analog Dual Modes




General
Frequency Range
VHF: 136-174MHZ; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz
Channels
160
Zones
32
Channel Spacing
12.5KHz/ 25KHz
Working Voltage
DC3.7V (±20%)
Frequency Stability
±1.5ppm
Antenna Impedance
50Ω
Battery Capacity
2000mAh
Battery Average Working Time(5/5/90)
Digital 14 hours; Analog 12 hours
Dimension
51(L)* 29(W)* 102(H) mm
Weight
176g (including battery)
Transmitter
Power Output
≤3W
4FSK Modulation
12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE
FM Modulation
12.5KHz: 8K50F3E; 25 kHz: 16K0F3E
Modulation Limitation
+/- 2.5KHz @ 12.5KHz; +/- 5KHz @ 25KHz
FM Noise
-40dB
Spurious Emission
-36 dBm≤1GHz/-30 dBm≥1GHz
Adjacent Channel Power
≤-60dB
Frequency Response
+1/-3dB
Vocoder
AMBE++
Audio Distortion
3%
Receiver
Digital Sensitivity
5% BER: 0.25 uV
Analog Sensitivity
0.25 uV (12 dB SINAD)
Intermodulation
60dB
Adjacent Channel Selectivity
60dB
Spurious Suppression
70dB
FM Noise
-40dB
Frequency Response
+1/-3 dB
Audio Power
1W
Audio Distortion
3%(typical)
Conduction Radiation
-36dBm
Environmental Specifications
Operating Temperature
-20℃~+60℃
Storage Temperature
-30℃~+85℃
Dust and Water Proof
IP54
Shock & Vibration
MIL-STD-810C/D/E/F
